Fertilizer Plant

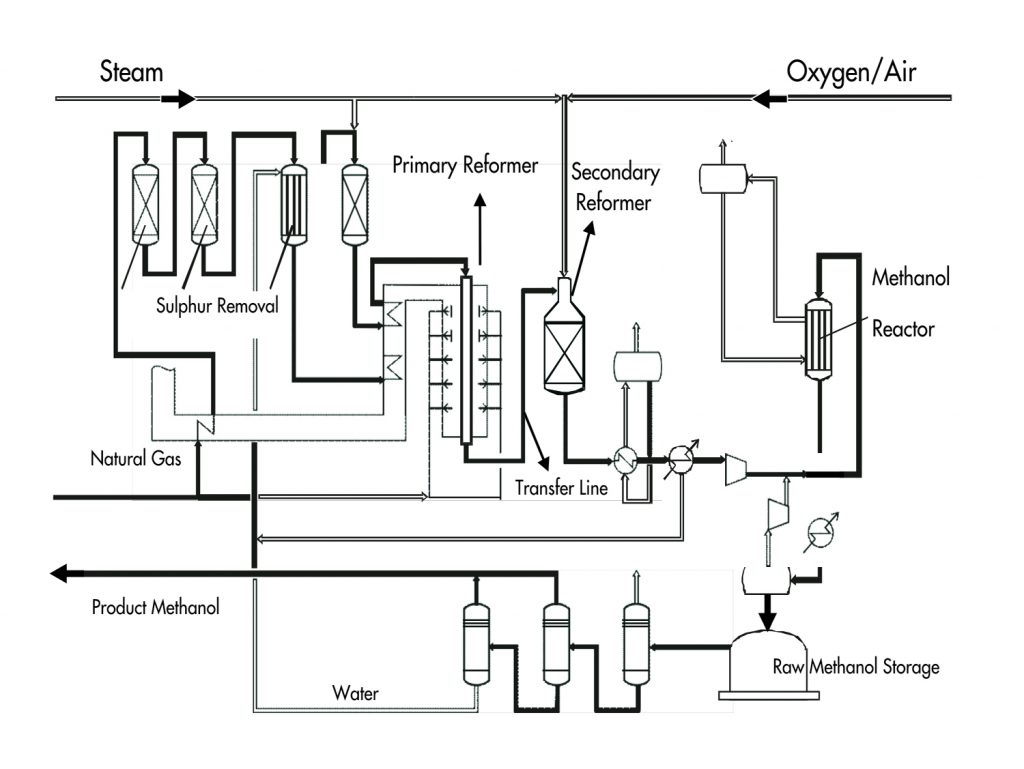

Process Flow : Primary Reformer, Secondary Reformer and Methanol Reactor :

Primary Reformer :

Radiant Floor & Side Walls Bottom Side Walls

HDFB(Mahakoshal 40/42) MAXLYTE 11/ MAXLYTE 9/7

CONVECTION ZONE

MAXLYTE 11/ 13 Li C/G

TUNNEL COVER SLABS

PCPF MAXMON 50/60

Radiant Walls

MAHAKOSHAL P-500/650 MAXLYTE- 11 Li / 8S -c/G

BURNER BLOCKS

PCPF MAXMON 60Li/70Li PCPF MAXMON 60A

HYDROGEN TRANSFER LINE

MAXCAST -T 95 / ALUMINA BRICK MAXLYTE 11 Li /Bubble Alumina Castable

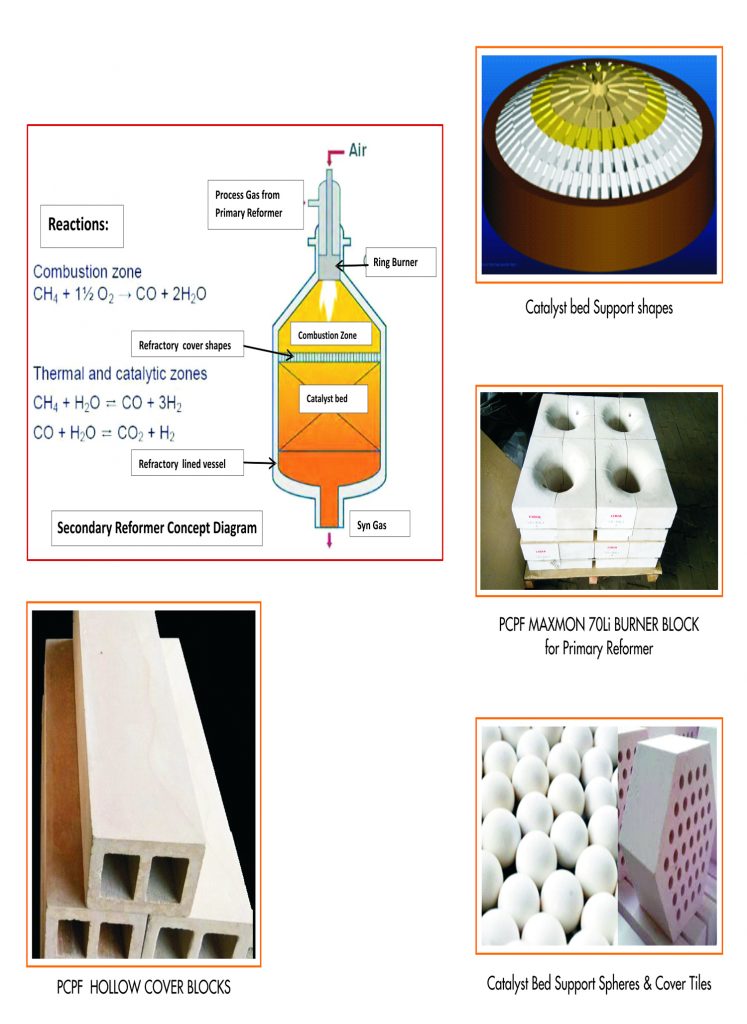

Secondary Reformer :

WALL/CONE/HEAD/BOTTOM

MAXCAST T-95 Alumina Fired Shapes CATALYST BED SUPPORT Mahakoshal Bubble Alumina Castable / Bricks

INLET DUCT

MAXCAST T-95 MAXLYTE- 11 LiZ/15Li Mahakoshal Bubble Alumina Castable / Bricks

×
